Plug-in Island Freezer is quite popular in supermarket, hypermarket, Shop .It offers a wide application with its flexiable characters and energy-saving features.
Side Unit

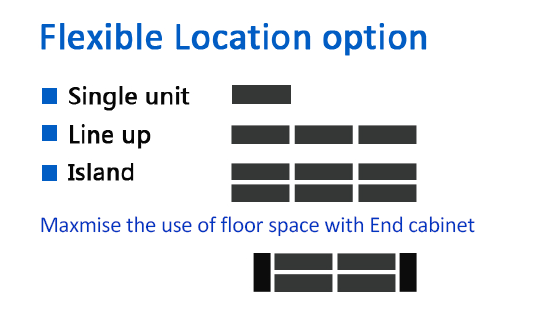

♦The island display freezer can match well with the column size of supermarket to get flexiable combination ,which can make full use of the space and get best display result.
♦Curved Low-E toughened glass to get best display for products in the freezer
♦Automatic defrosting system
♦No waste water during working , no need to add any defrosting tray
♦Waste heat collected to be reused to avoid the glass cover condensation
♦Electrical temperature control
♦LED interior lighting
♦Integrated price tag rails
♦Plug-in freezer , flexible for installation and disply
♦Powder coated in grey/black/white with zinc finish
| Model | IF15 | IF18 | IF21 | IF25 | IF18E( End unit) | |
|---|---|---|---|---|---|---|
| Width(cm) | 150 | 180 | 210 | 250 | 180 | |
| Net Capacity(L) | 490 | 610 | 735 | 900 | 610 | |
| Energy consumption freezing in 24h(Kw.h) | 6.8 | 7.3 | 7.4 | 7.5 | 7.3 | |
| Exterior Dimension in mm (W*D*H) | 1455* 865*885 | 1805* 865*885 | 2105* 865*885 | 2505* 865*885 | 1825* 865*885 | |
| Defrost | Auto hot gas defrost | |||||
| Refrigerant | R404a/R290 | |||||
| Power supply(V/Hz) | 220/50 ,115/60 | |||||
Option:
Top Non-cooling shelves available for island freezers to enlarge the display area
Different Cabinet Colors available
Temperature range
Midium temperature : +3℃～+5℃
Medium Temperature for Meat ：0℃～2℃
Low Temperature : -18℃～-22℃

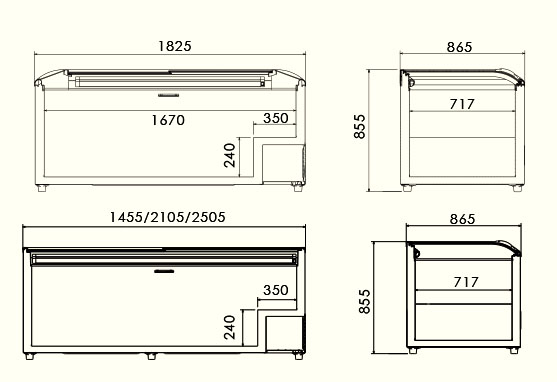

section drawing
island freezer
