Angle Steel Shelf Introduction

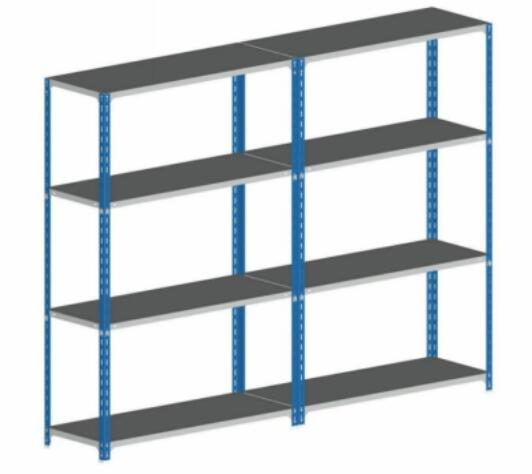

Light Angle Steel Shelf (QJG):

The shelves are assembled in a plug-in manner, and their installation and disassembly are very convenient.
The entire shelf consists of uprights, angle steel, bayonet pins, feet and laminate. The laminate is a steel laminate, which can be adjusted freely up and down within a unit space of 50mm.
The shelf is light and beautiful, and the goods are manually accessed; the load capacity of each layer of the shelf is generally not more than 150Kg.
Shelf is widely used in electronics, light industry, culture and education industries.

Standard height: H = 1500/1800/2000 mm
Standard width: W = 400/450/500/550/600 mm
Standard length: L = 1000/1200/1500/1600/1800 mm

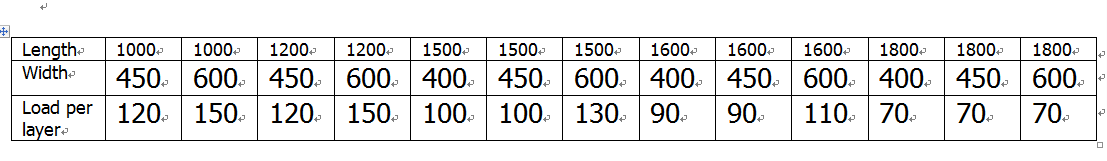

The shelf specifications and load table are as follows:

angle steel shelf spec

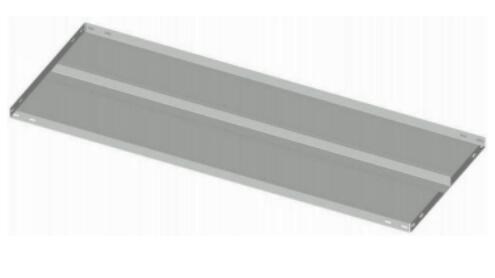

Steel plate: It is bent by four sides of Japanese standard SPCC cold plate according to the required size. In the form of ribs, spot welding is used for welding.
This structure has the characteristics of saving materials, good bearing conditions and smooth surface.

When the width W≥600, weld 2 ribs.

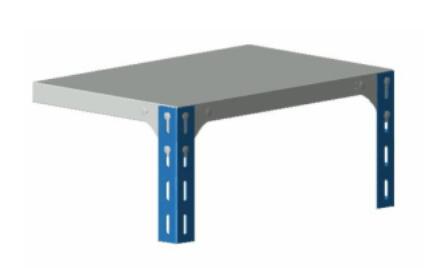

The top of the shelf is connected with the bottom laminate and the column by double angle codes and special bolts, which makes the shelf stable.

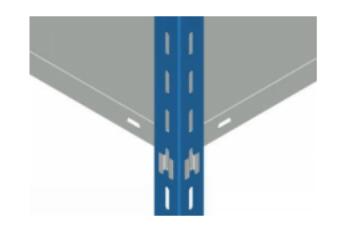

The middle shelf is connected with 8 bayonet pins, which is convenient for installation and disassembly.

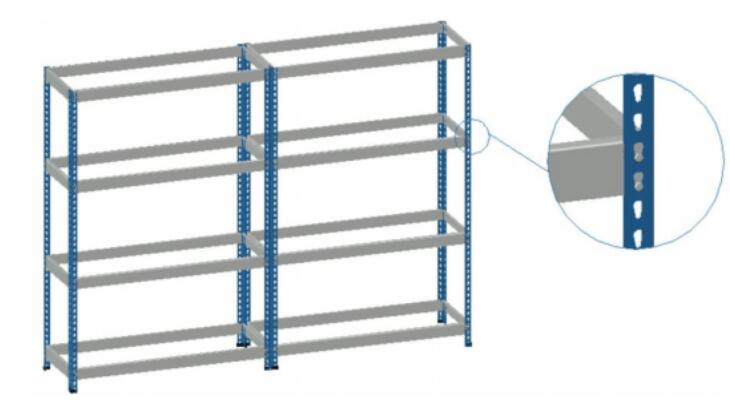

hardy Hole Angle Steel Shelf (QHK)

It consists of uprights, beams and plastic feet. It is equipped with wood laminates, grid laminates and steel laminates.
Shelf specifications can be made according to customer requirements, layer load ≤ 150Kg / layer.
