Monoblock refrigeration unit is a type of compact refrigeration system that integrates the compressor, condenser, evaporator into a single unit. The advanced system combines cutting-edge technology wth exceptional performance to deliver efficient and reliable refrigeration. With a powerful cooling capacity, it ensures rapid and consistent temperature control.

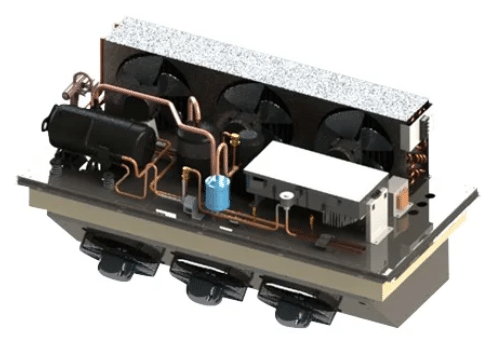

Ceiling mounted monoblock refrigeration unit

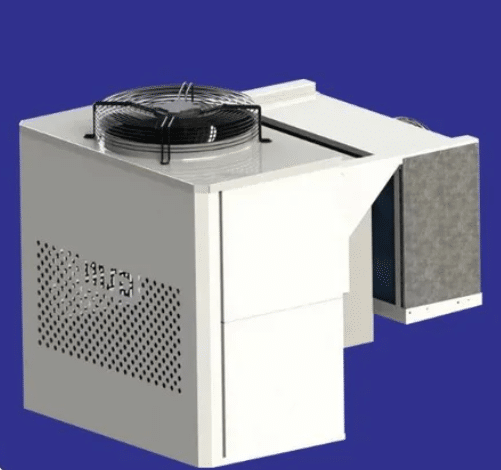

side wall mounted monoblock refrigeration unit
Features:
Pre-charged with refrigerant
Quick and easy installation
Sanyo DC inverter compressor
Electric expansion valve
hot case defrosting ,fully automatic
Suitable for MT and LT cold rooms both
Power supply 220V/50hz; 220V/60Hz
Refrigerant: R404A,R448A,R449A
Horsepower; 1-4HP
Temp. evap.: -40ºC ～ -5ºC
Temp. Ambient: -7～43 ºC
As per the cooling capacity calculation, A cold room area reference for monoblock refrigeratin units works.
Horsepower
For chilling 0°C degree
For freezing -15°C~-18°C
1 HP
10~12 m3
5~7 m3
2 HP
22~25 m3
12~15 m3
3 HP
36~40 m3
17~25 m3
4 HP
48~55 m3
28~35 m3
We offer complete solutions for cold room design&fabrication, Please talk with us for any inquiry.
